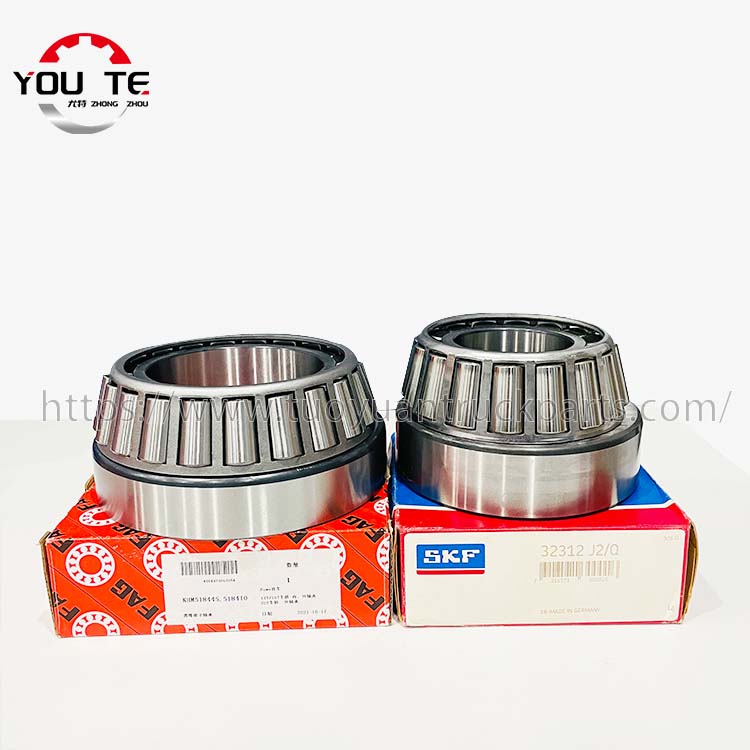

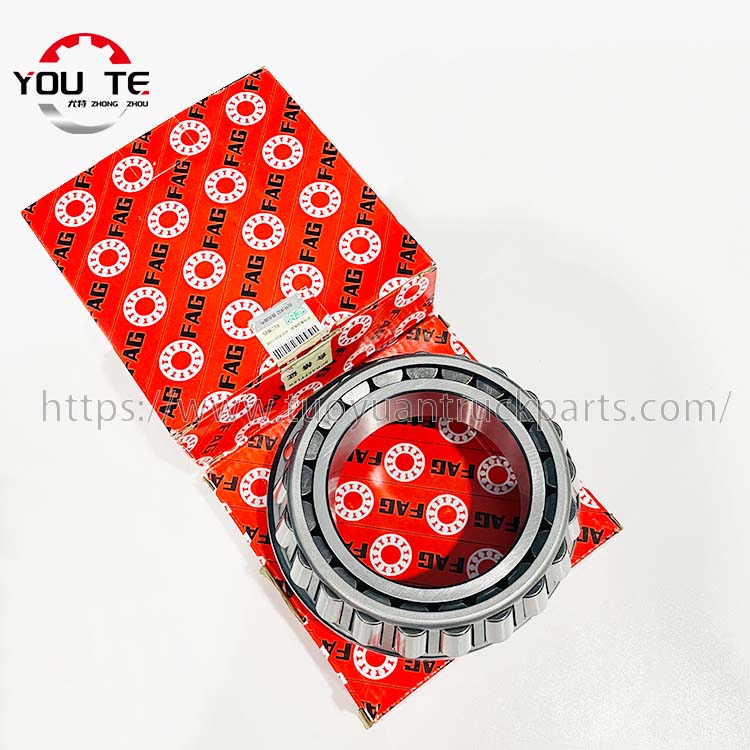

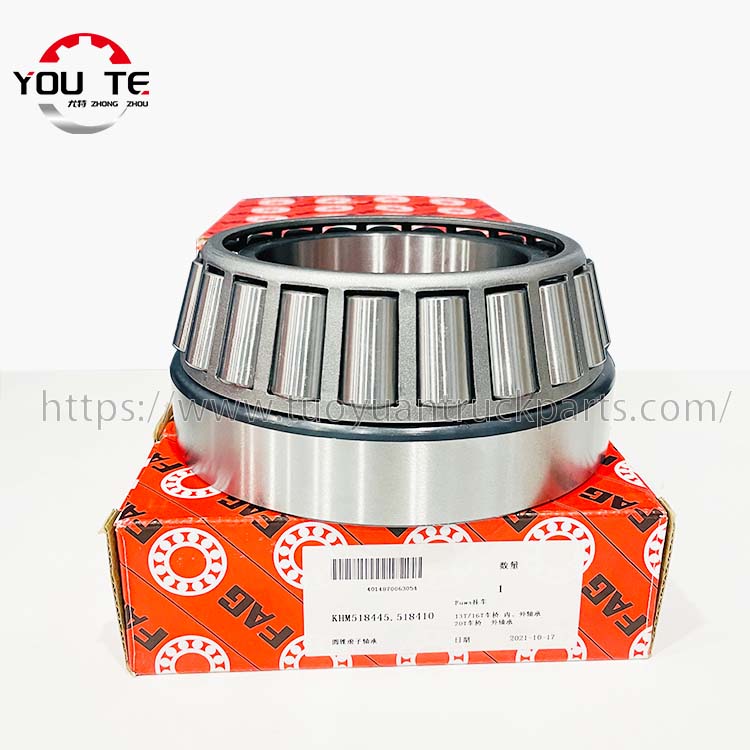

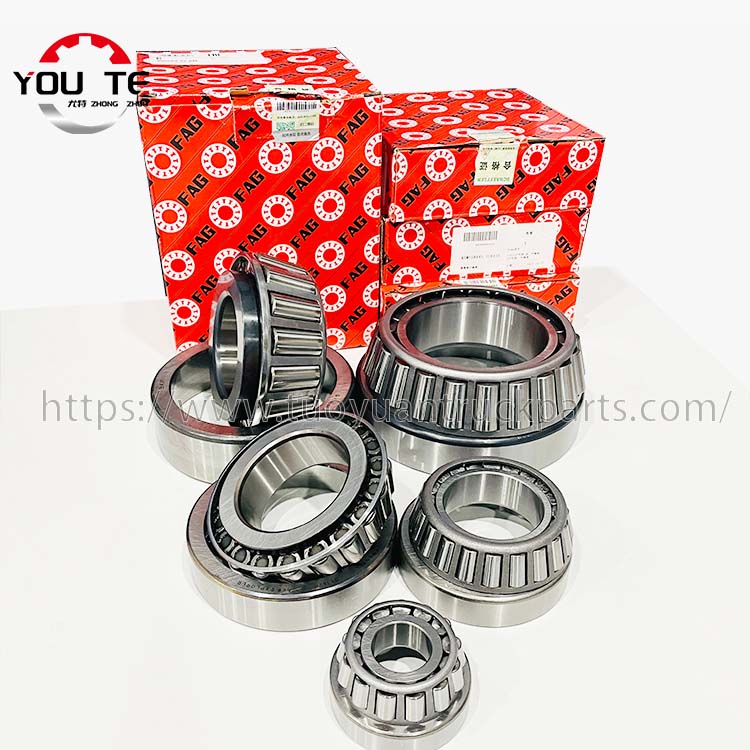

Single Row Roller Bearing Tapered Roller Bearings

Hebei Tuoyuan Machinery Co., Ltd. is a professional factory selling Single Row Roller Bearing Tapered Roller Bearings. Single row tapered roller bearings can bear radial loads and axial loads in one direction. When a bearing is subjected to a radial load, an axial component force will be generated, so another bearing that can bear the axial force in the opposite direction is needed to balance it.

Model:A2047 A2126

Send Inquiry

Our service

Round-dimensional Single Row Roller Bearing Tapered Roller Bearings are suitable for bearing radial, unidirectional, axial loads and combined radial and axial loads. The axial load capacity of round-dimensional roller bearings depends on the contact angle Q, which is the angle of the outer ring raceway. The larger the contact angle a, the greater the axial load capacity of the tapered roller bearing.

Single Row Roller Bearing Tapered Roller Bearings are generally not allowed to have angular errors, but after special design, an angular error of 2"~4" on the surface of the rollers and raceways is acceptable. In addition to metric series, Yuanwei roller bearings also have inch series. The customization and dimensions of the man-made series comply with the 1S355:1977F standard, while the inch series comply with the AFBMA standard. Tapered roller bearings can be divided into single-row, two-row, four-row and other structural forms according to the number of roller rows.
